| Application: | Rope, Packaging, Netting, Manufacturing, Fencing, Construction | Alloy or Not: | Custom Made |
|---|---|---|---|
| Standard: | BS, JIS, GB, ASTM, DIN, AISI | Material: | ASTM A36 A572 A992 S235jr/J0/J2 S355jr/J0/J2 |
| Custom Made: | Yes | Custom Cycle: | 7-15 Days |
| Product Name: | Galvanized Steel Wire | Payment Term: | 30%T/T Advance + 70% Balance |
| MOQ: | 3tons | Lengh: | Custom Made |
| Advantage: | Wear Resistance, Machinability, Easy Welding | Specification2: | Zd-Galwire5 6 7 8 9 10 |
| Specification3: | Zd-Galwire12 14 15 16 18 | Standard1: | ASTM a 6/a 6m-07 BS 4-1:1993 En 10024 JIS G 3192 |
| Transport Package: | Export Standard Package/as Request | Specification: | According to customer requirements |
| Trademark: | ZHENGDE | Origin: | China |
| HS Code: | 7217200000 | Supply Ability: | 50000 Tons/Month |

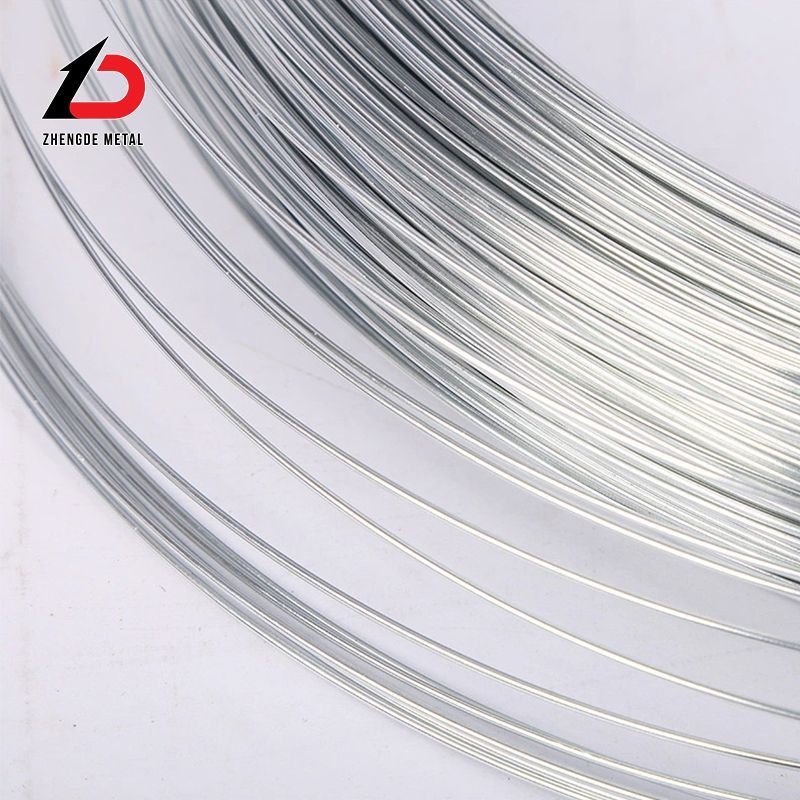

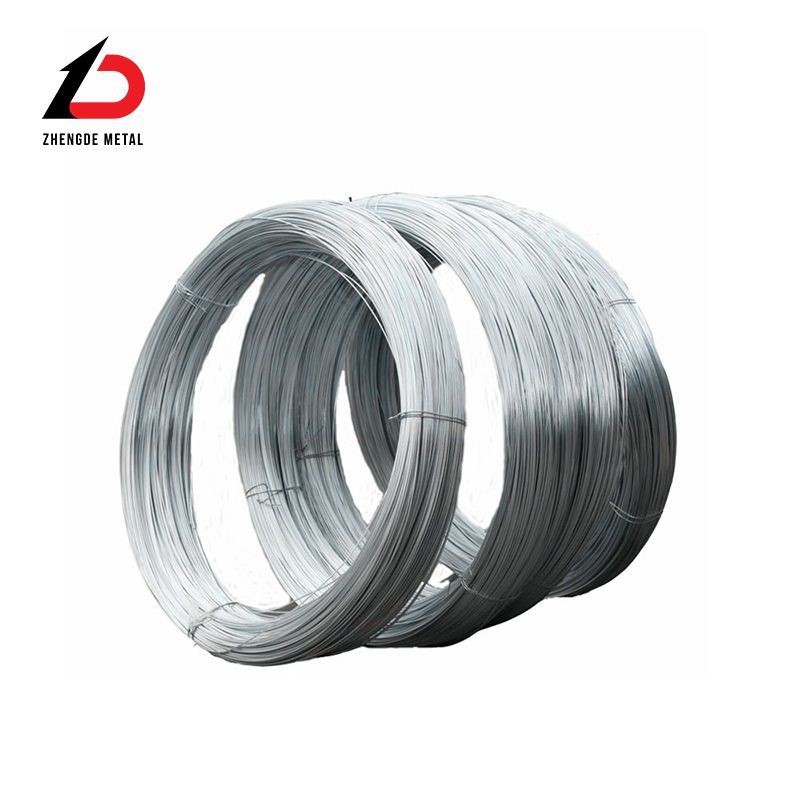

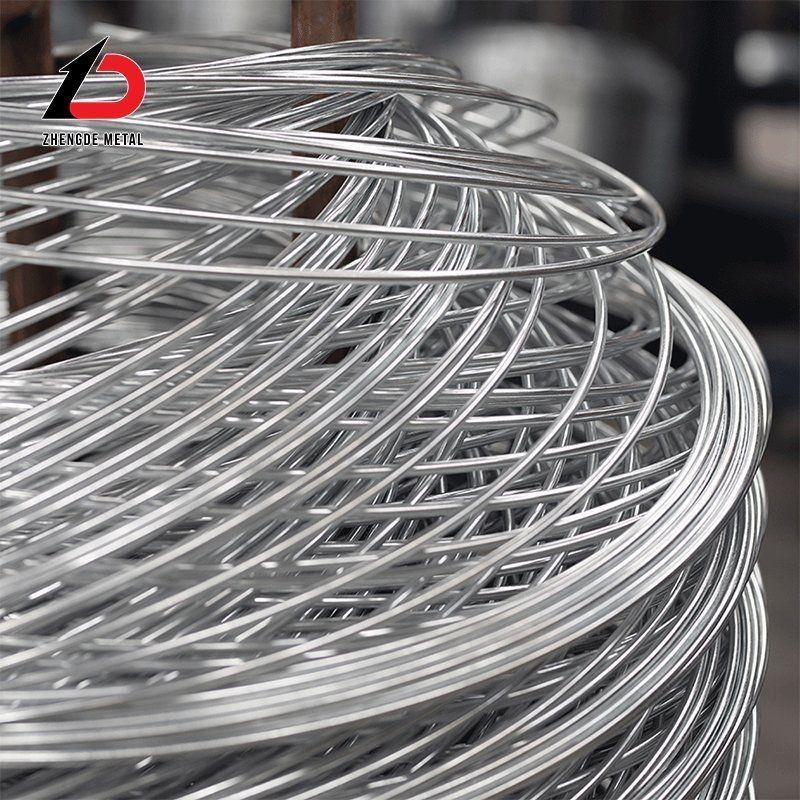

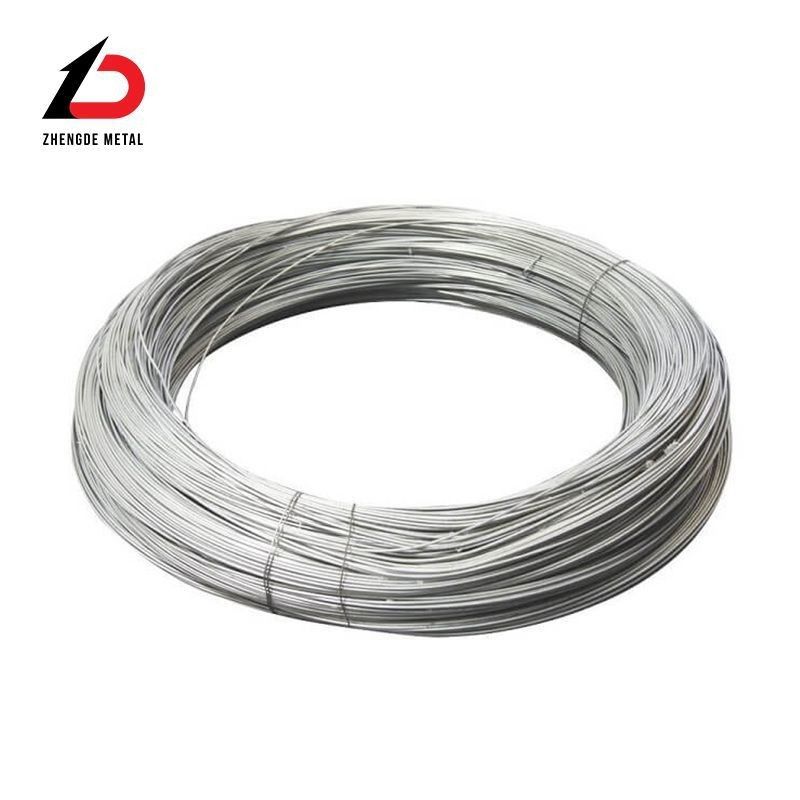

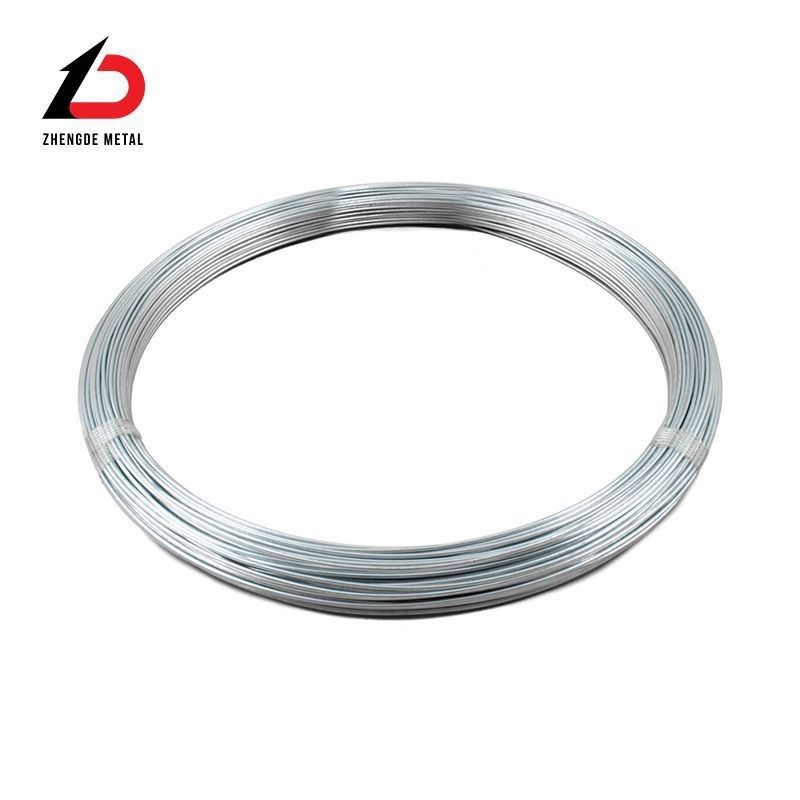

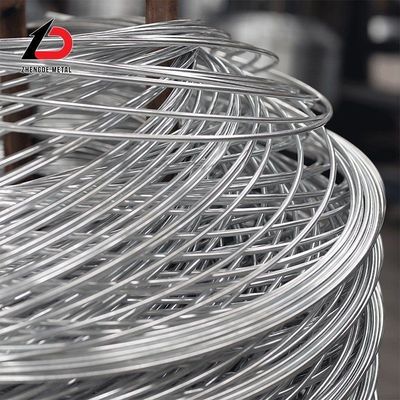

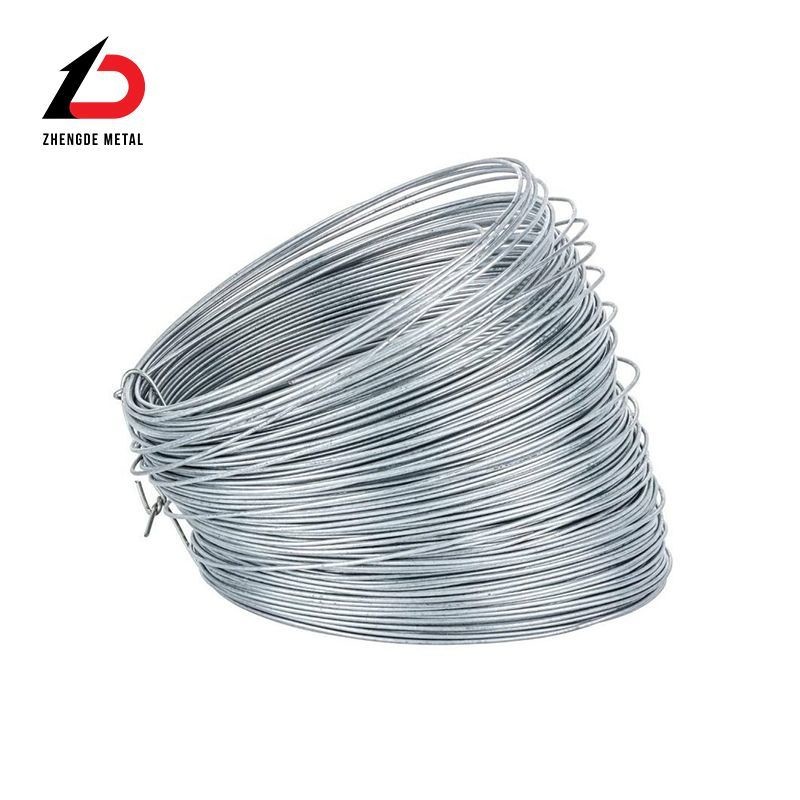

Galvanized Iron Wire is designed to prevent rusting and shiny silver in color. It is solid,durable and extremely versatile, it is widely used by landscapers, craft makers, building and constructions,ribbon manufacturers, jewelers and contractors.Its aversion to rust makes it extremely useful around the shipyard,in the backyard, etc.
Galvanized wire is divided into hot dipped galvanized wire and cold galvanized wire (electro galvanized wire). Galvanized wire has good toughness and flexibility, the maximum amount of zinc can reach 350 g/sqm. With zinc coating thickness, corrosion resistance and other characteristics.
| Gauge | SWG | BWG | AWG | Metric system | ||||
| in | mm | in | mm | in | mm | mm | kg/km | |
| 0 | 0.324 | 8.23 | ||||||
| 1 | 0.3 | 7.02 | ||||||
| 2 | 0.276 | 7.01 | ||||||
| 3 | 0.252 | 6.401 | 0.259 | 6.58 | 0.2294 | 5.83 | ||
| 4 | 0.232 | 5.893 | 0.238 | 6.05 | 0.2043 | 5.19 | 6 | 220 |
| 5 | 0.212 | 5.385 | 0.22 | 5.59 | 0.1819 | 4.62 | 5.5 | 185 |
| 6 | 0.192 | 4.811 | 0.203 | 5.16 | 0.162 | 4.11 | 5 | 153 |
| 7 | 0.176 | 4.47 | 0.18 | 4.57 | 0.1443 | 3.67 | 4.5 | 124 |
| 8 | 0.16 | 4.064 | 0.165 | 4.19 | 0.1285 | 3.26 | 4 | 98 |
| 9 | 0.144 | 3.658 | 0.148 | 3.76 | 0.1144 | 2.91 | 3.5 | 95 |
| 10 | 0.128 | 3.251 | 0.134 | 3.4 | 0.1019 | 2.59 | 3.2 | 62 |
| 11 | 0.116 | 2.946 | 0.12 | 3.05 | 0.09074 | 2.3 | 2.9 | 51 |
| 12 | 0.104 | 2.642 | 0.109 | 2.77 | 0.08081 | 2.05 | 2.6 | 41 |
| 13 | 0.092 | 2.337 | 0.095 | 2.41 | 0.07196 | 1.83 | 2.3 | 32 |
| 14 | 0.08 | 2.032 | 0.083 | 2.11 | 0.06408 | 1.63 | 2 | 24 |
| 15 | 0.072 | 1.829 | 0.072 | 1.83 | 0.05707 | 1.45 | 1.8 | 20 |
| 16 | 0.064 | 1.626 | 0.065 | 1.65 | 0.05082 | 1.29 | 1.6 | 16 |
| 17 | 0.056 | 1.422 | 0.058 | 1.47 | 0.04526 | 1.15 | 1.4 | 12 |
| 18 | 0.048 | 1.219 | 0.049 | 1.24 | 0.0403 | 1.02 | 1.2 | 8 |
| 19 | 0.04 | 1.016 | 0.042 | 1.07 | 0.03589 | 0.91 | 1 | 6 |
| 20 | 0.036 | 0.914 | 0.035 | 0.89 | 0.03196 | 0.812 | 0.9 | 5 |
| 21 | 0.032 | 0.873 | 0.032 | 0.81 | 0.02846 | 0.723 | 0.711 | 3.2 |
| 22 | 0.028 | 0.711 | 0.028 | 0.71 | 0.02535 | 0.644 | 0.558 | 3.1 |
