| Σχήμα αριθ.: | ZD-HRP15T1200W | Τύπος: | Ειδικότερα, οι εν λόγω διατάξεις ισχύουν για τα προϊόντα που αναφέρονται στην παράγραφο 1 του παρόντ |
|---|---|---|---|
| Επεξεργασία επιφάνειας: | Μαύρα χρωματισμένα, PE επικαλυμμένα, γαλβανισμένα κλπ... | Τεχνική: | Επικονικευμένα |
| Εφαρμογή: | Σκηνοθεσία και πίνακες, πλάκα πλοίου, πλάκα λέβητα, πλάκα εμπορευματοκιβωτίου, πλάκα φλάντζης | Ειδική χρήση: | Εργαλεία κοπής, εργαλεία μέτρησης, κοπτήρες από κοινό χάλυβα, πλάκες χάλυβα υψηλής αντοχής, ανθεκτικ |
| Αποθέματα: | Αποθέματα | Υλικό: | Α36 /S235 /S275jr /S355jr DC01//Ss400/SA283 κλπ. |
| Δάχος: | 0.2150mm | Διάμετρο: | 10 mm-3000 mm |
| Βάρος κυλίνδρου: | 0.5t-25t | Προσαρμοσμένα: | Ναι. |
| Προσαρμοσμένος κύκλος: | 7-15 ημέρες | MOQ: | 1 τόνος |
| Ανεκτικότητα: | +-1 | Χρόνος παράδοσης: | μέσα σε 7 εργάσιμες ημέρες |

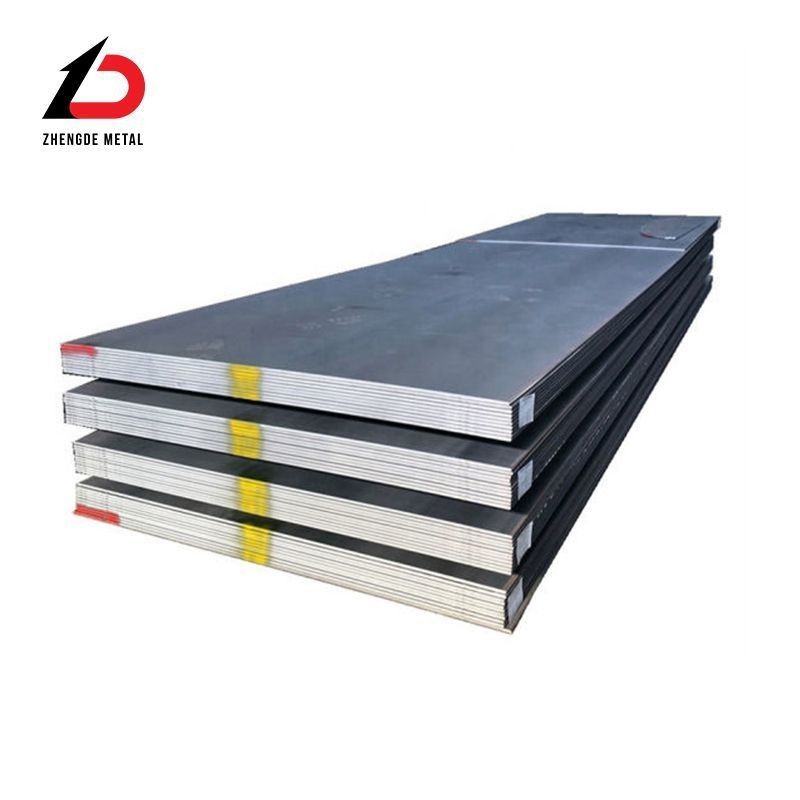

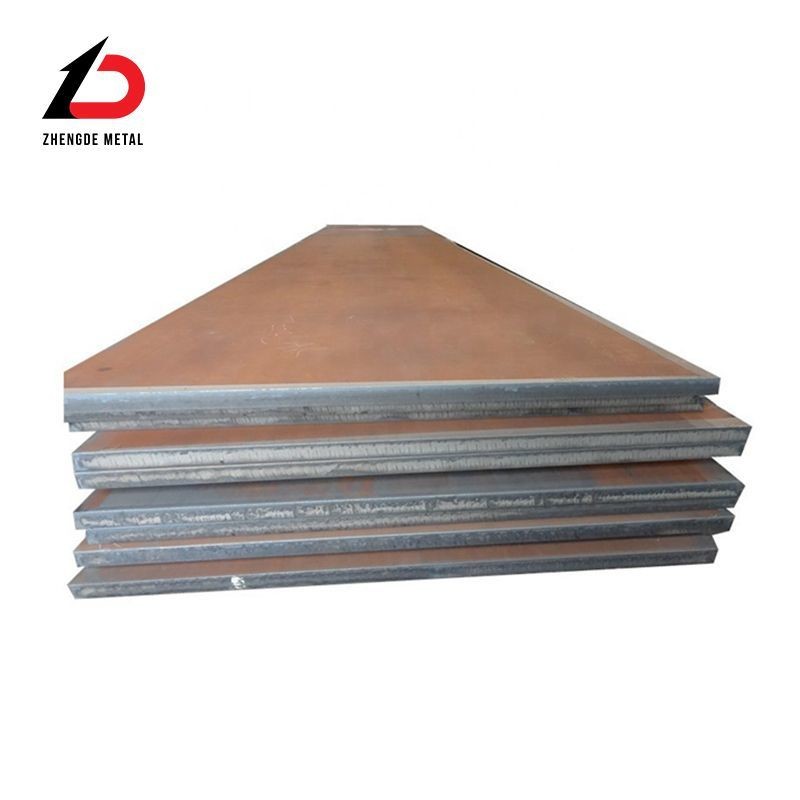

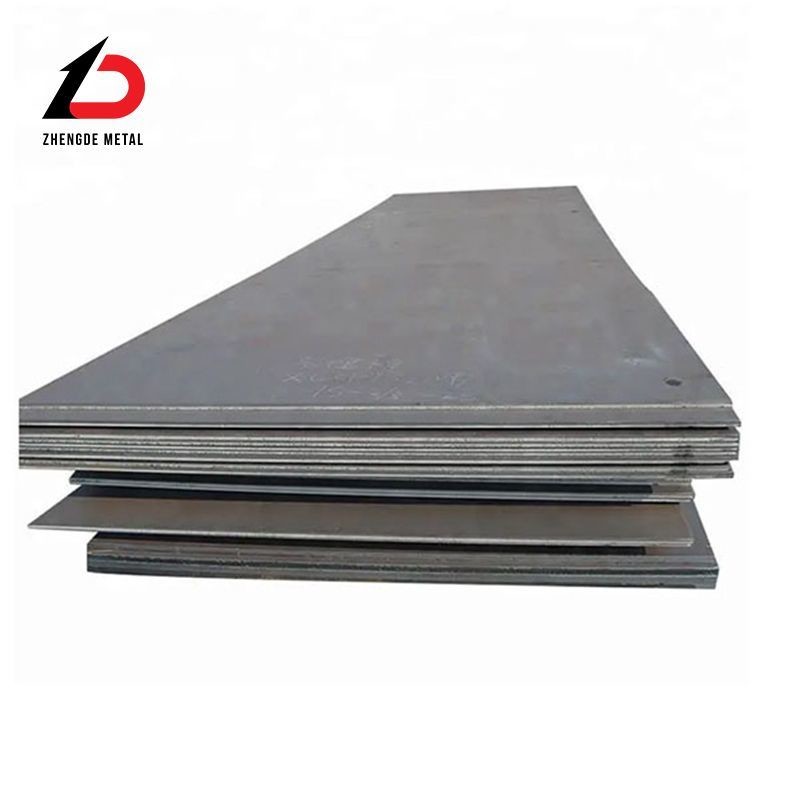

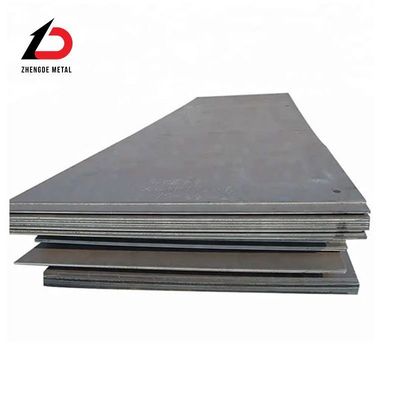

| Προϊόν: | Καυτός - κυλημένο φύλλο χάλυβα | Υπηρεσία επεξεργασίας: | Τυλιγμός, συγκόλληση, αποσύνδεση, τρύπηση, κοπή |
| Δείγμα: | Διαθέσιμο | Πακέτο μεταφοράς: | Τυπικό πακέτο εξαγωγής/κατά αίτηση |
| Προδιαγραφές: | Σύμφωνα με τις απαιτήσεις του πελάτη | Εμπορικό σήμα: | Ζενγκντε |
| Καταγωγή: | Κίνα | Κωδικός ΕΣ: | 7208250000 |
| Δυνατότητα προσφοράς: | 80000 τόνοι/μήνα | ||
| Επισημαίνω: | s235 θερμά κυλούμενα φύλλα χάλυβα,q235 φύλλα χάλυβα έλασης θερμής έλασης,Ss400 φύλλα από χάλυβα θερμά κυλούμενα |
||
| Type | Chinese enterprise standard | fairly international standard | illustrate | ||
| Standard | Grade | Standard | Grade | ||
| Hot rolled low carbon steel | Q/BQB 302 | SPHC | JIS G3131 | SPHC | Suitable for the manufacture of cold-formed parts. |
| SPHD | SPHD | ||||
| SPHE | SPHE | ||||
| StW22 | DIN 1614 | StW22 (DD11) | |||
| StW23 | (EN10111) | STW23 (DD12) | |||
| StW24 | StW24 (DD13) | ||||
| general structural steel | Q/BQB 303 | SS 330 | JIS G3101 | SS 330 | It is used for general structural parts such as buildings, bridges, ships, and vehicles. |
| SS400 | SS400 | ||||
| SS 490 | SS 490 | ||||
| SS 540 | SS 540 | ||||
| St 33 | DIN 17100 | St 33 (S185) | |||
| St 37-2 | (EN10025) | St 37-2 (S235JR) | |||
| St 37-3 | St 37-3 (S235JO) | ||||
| St 44-2 | St 44-2 (S275JR) | ||||
| St 50-2 | St 50-2 (E295) | ||||
| St 52-3 | St 52-3 (S355JO) | ||||
| Mechanical structural steel | Q/BQB 303 | C22 | DIN 17200 | C22 | It is used for mechanical structural parts after cutting and other processing and heat treatment. |
| C35 | JIS G4501 | C35 | |||
| S20C | S20C | ||||
| S35C | S35C | ||||
| Fine Grain Structural Steel | --- | StE255 | DIN 17102 | StE255 | Fine grained structural steel suitable for welding. |
| StE355 | StE355 | ||||
| steel strip for steel pipe | Q/BQB 303 | SPHT1 | JIS G3132 | SPHT1 | For welding steel pipes. |
| SPHT2 | SPHT2 | ||||
| SPHT3 | SPHT3 | ||||
| Boiler and pressure vessel steel | Q/BQB 320 | HII | DIN 17155 (EN10028-2) | HII (P265GH) | In addition to ensuring normal temperature performance, it also guarantees mechanical properties at higher temperatures, and is suitable for steam boiler equipment, pressure vessels with higher working temperatures and similar structural parts. |
| 19Mn6 | 19Mn6 (P355GH) | ||||
| Q/BQB 320 | SB410 | JIS G3103 | SB410 | ||
| Q/BQB 321 | B440HP | JIS G3116 | SG295 | Steel plates for welding gas cylinders. | |
| B490HP | SG325 | ||||
| Atmospheric corrosion resistant steel | Q/BQB 340 | WTSt37-2 | SEW087 (EN10155) | WTSt37-2 (S235J2W) | It is used to manufacture interception and fuel for structural parts such as containers, railway vehicles, oil derricks, and construction machinery that require atmospheric corrosion resistance. |
| WTSt52-3 | WTSt52-3 (S355J2G1W) | ||||
| NAW 400 | NSC | NAW 400 | |||
| NAW 490 | NAW 490 | ||||
| B460NQR | --- | --- | |||
| B490NQR | |||||
| Sulfuric acid corrosion resistant steel | S-ten2 | NSC | S-ten2 | Used in the manufacture of containers for hydrogen sulfide-containing media, etc. | |
| seawater corrosion resistant steel | Mariloy G41A | Mariloy G41A | Used for structural components such as oil production platforms, ships, and harbor buildings. | ||
| Mariloy S50A | Mariloy S50A | ||||
| high weather resistance | BZJ342 | B480GNQR | --- | --- | Used in the manufacture of vehicles, containers, construction and |
| structural steel | other structural parts. | ||||
Quality first: production and inspection in strict accordance with production standards;
Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
1.You are a manufacturing or trading company?
---We are manufacturer. And we have years of export experience. We can ofer competitive price.
2.What quote do you offer?
---FOB&CFR&CIF and others ways according the your needs.
3. Can I have a trial order only several tons?
---Of course, We can ship the cargo for you with LCL (Less container load).
4.Can we print our own logo ?
---Yes, we can print logo for you.
5.How pay?
---T/T L/C or as you requested.
6. What is your MOQ?
---It is 3 ton each size for PPGI.
7. Do you provide samples?
---Yes. We could offer the sample by free but you should pay the freight cost
8.What is the quality of your products guarantee?
---We can offer the material testing report before the shipment.
9.Do you have after-sales service?
---Certainly. you can contact us at any time.
