| Σχήμα αριθ.: | Δελτίο ΕΚΑΧ αριθ. | Τύπος: | AISI, ASTM, GB, JIS, DIN, BS |
|---|---|---|---|
| Τεχνική: | Επικονικευμένα | Εφαρμογή: | Δομική ράβδος χάλυβα, ράβδος χάλυβα εργαλείου, ράβδος χάλυβα πεταμένου |
| Επεξεργασία επιφάνειας: | Προσαρμοσμένα | Συσκευές από χάλυβα: | Προσαρμοσμένα |
| Ειδική χρήση: | Χάλυβας μούχλας, χάλυβας ελεύθερης κοπής, χάλυβας ψυχρής μεταφοράς | Υλικό: | ΑΣTM A36 A572 A992 S235jr/J0/J2 S355jr/J0/J2 |
| Προσαρμοσμένα: | Ναι. | Προσαρμοσμένος κύκλος: | 7-15 ημέρες |
| Ονομασία του προϊόντος: | Στρογγυλή μπάρα από χάλυβα | Προθεσμία πληρωμής: | 30% Τ/Τ προκαταβολή + 70% υπόλοιπο |
| Σύνθετο ή όχι: | Προσαρμοσμένα | Τροποποιημένο: | 3 τόνους |
| Διάρκεια: | Προσαρμοσμένα | Πλεονέκτημα: | Αντίσταση φθοράς, μηχανική ικανότητα, εύκολη συγκόλληση |
| Προδιαγραφή2: | Zd-Hrrbd20 30 50 60 70 75 80 90 | Προδιαγραφή3: | Zd-Hrrbd100 120 140 160 180 200 |
| Πρότυπο 1: | ΑΣTM a 6/a 6m-07 BS 4-1:1993 EN 10024 JIS G 3192 | Πακέτο μεταφοράς: | Τυπικό πακέτο εξαγωγής/κατά αίτηση |
| Προδιαγραφές: | σύμφωνα με τις απαιτήσεις του πελάτη | Εμπορικό σήμα: | Ζενγκντε |
| Καταγωγή: | Κίνα | Κωδικός ΕΣ: | 7214100000 |
| Δυνατότητα προσφοράς: | 50000 τόνοι/μήνα | ||
| Επισημαίνω: | steel round bar factory direct,steel round bar for construction,durable steel round bar |
||

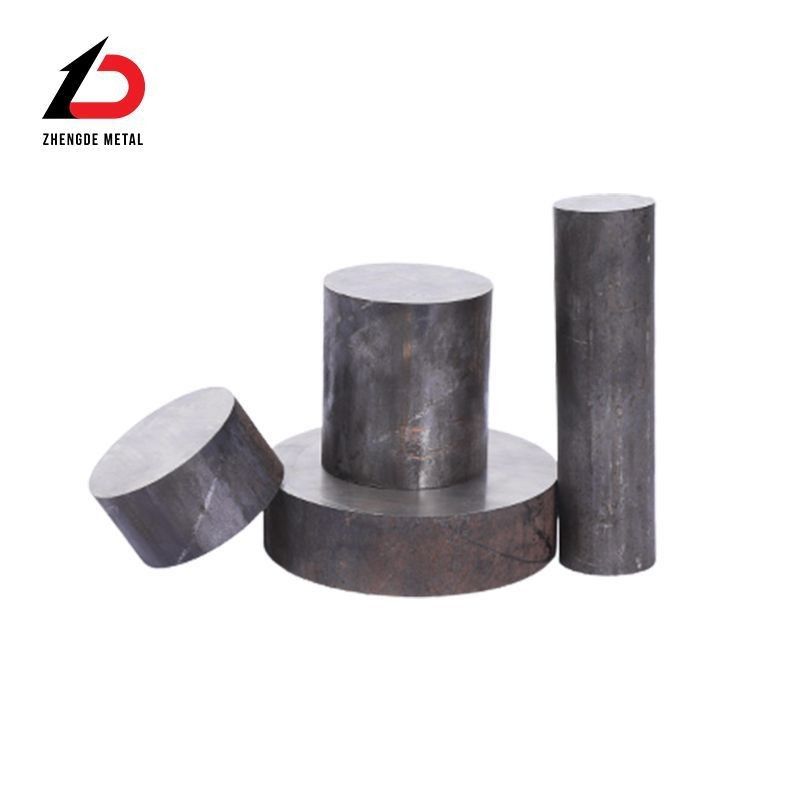

Zhengde Steel Round bar refers to a solid strip of steel with a circular cross section. Its specifications are expressed in millimeters of diameter, such as "50" means a round steel with a diameter of 50 mm.
Steel Round bar is divided into three types: hot rolled, forged and cold drawn. The specifications of hot-rolled round steel are 5.5-250mm. Among them: 5.5-25 mm small round steel is mostly supplied in bundles of straight strips, which are often used as bolts and various mechanical parts; round steel larger than 25 mm is mainly used for manufacturing mechanical parts or seamless steel pipe billets.
The difference between steel Round bar and other steel bars: The shape is different. The shape of round bar is smooth and round, without grain and ribs. Other steel bars have grooves or ribs on the surface, which will cause the bond between round bar and concrete small, while other steel bars have a strong bond with concrete.
| d (mm) | kg/m | d (mm) | kg/m |
|---|---|---|---|
| 6 | 0.222 | 14 | 1.21 |
| 8 | 0.395 | 17 | 1.78 |
| 10 | 0.617 | 19 | 2.23 |
| 12 | 0.888 | 21 | 2.72 |
| 22 | 2.98 | 63 | 24.5 |
| 25 | 3.85 | 70 | 30.2 |
| 28 | 4.83 | 85 | 44.5 |
| 30 | 5.55 | 95 | 55.6 |
| 32 | 6.31 | 105 | 68 |
| 34 | 7.13 | 115 | 81.5 |
| 36 | 7.99 | 125 | 96.3 |
| 38 | 8.9 | 130 | 104 |
| 40 | 9.86 | 140 | 121 |
| 42 | 10.9 | 150 | 139 |
| 45 | 12.5 | 160 | 158 |
| 48 | 14.2 | 170 | 178 |
| 50 | 15.4 | 180 | 200 |
| 53 | 17.3 | 190 | 223 |
| 56 | 19.3 | 220 | 298 |
Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises.
Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
